Description
Basic Info.
Model NO.
15tonnes gas tank
Function
Storage Pressure Vessel, Separation Pressure Vessel, Heat Pressure Vessel, Reaction Pressure Vessel
Application
Liquefied Gas
Material
Carbon Steel
Pressure
1.77MPa
Storage Medium
LPG (Propane)
Pressure Level
Medium Pressure (1.6MPa≤p<10.0MPa)
Condition
New
Material Steel
Q345r or Q370r Carbon Steel or ASME Material SA516
Shell Thickness
12mm
Head Thickness
12mm
Corrosion Allowance
1mm
Liquid Density
420-590kg/M³
Production Standard
GB/ASME/Khk/Kgs
Kerb Weight
7000kg
Loading Weight
15000
Transport Package
Bulk or Roro Ship
Specification
30m³ 30cbm 15ton 15mt 30000liters
Trademark
Vehision
Origin
China
HS Code
7311009000
Production Capacity
3000PCS Per Year
Packaging & Delivery
Package Size
10800.00cm * 3000.00cm * 3300.00cm
Package Gross Weight
12640.000kg
Product Description

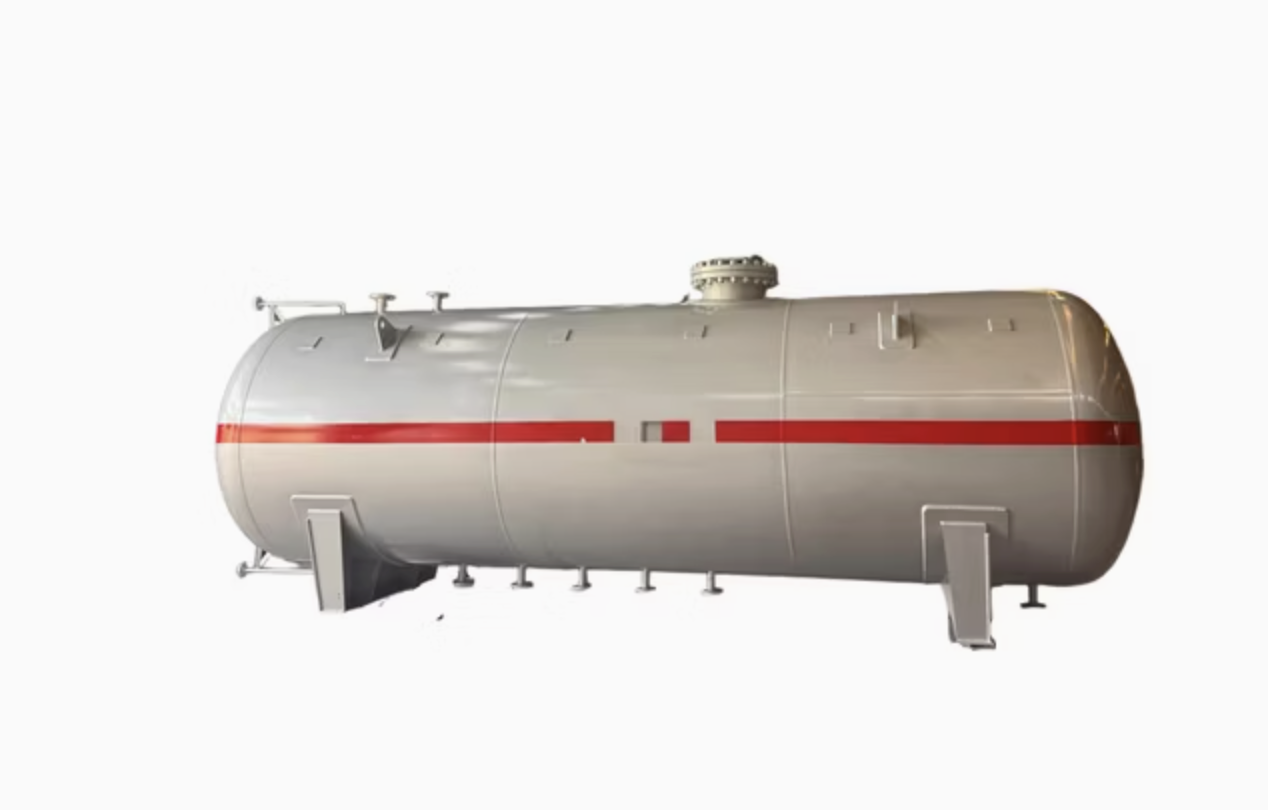

30m³ LPG Storage Tank
Our high-strength LPG storage tank is engineered for maximum safety, durability, and long-term reliability in industrial, commercial, and energy applications. Built with high-quality steel and advanced welding technology, this tank ensures superior pressure resistance, corrosion protection, and leak prevention. Designed to meet stringent international safety standards, it provides stable performance under harsh environments and varying operating conditions. Suitable for large-scale fuel storage and distribution systems, it delivers secure and efficient LPG containment for continuous, trouble-free operations.
Applications
1.Energy Supply: Bulk LPG storage for gas stations, refill plants, and distribution centers
2.Industrial Applications: Fuel storage for factories, boilers, heating systems, and process energy
3.Mining: Stable on-site fuel storage for mining equipment, power generators, and remote operations
4.Commercial Use: Storage for hotels, restaurants, communities, and centralized gas supply systems
2.Industrial Applications: Fuel storage for factories, boilers, heating systems, and process energy
3.Mining: Stable on-site fuel storage for mining equipment, power generators, and remote operations
4.Commercial Use: Storage for hotels, restaurants, communities, and centralized gas supply systems
|
Key Features
|
||||
|
Capacity & Structure
|
Horizontal pressure vessel design in various capacities for safe and stable LPG storage.
|
|||
|
Material
|
Built with Q345R ,or Q370R, or ASME SA516 high-strength carbon steel, compliant with pressure vessel standards.
|
|||
|
Safety Testing
|
Complete NDT (MT, UT, RT) with on-site inspection and certified pressure vessel documentation.
|
|||
|
Surface Protection
|
Sandblasted and coated with anti-corrosion paint for long-lasting durability.
|
|||
|
Customization
|
Optional custom logos and branding to match project requirements.
|
|||
|
Transport-Friendly
|
Smooth finish and reinforced design for easy handling, loading, and transportation.
|
|||
LPG Storage Tank Specification
Drawings & Dimensions
Detailed CAD drawings and tank dimension layouts are available upon request. Our engineering team can also provide customized designs to meet specific LPG storage and project requirements.
