Description

A fully turnkey, self-contained mobile workspace constructed from a new, one-trip 40ft standard dry shipping container. The conversion creates a durable, insulated, and instantly operational office environment, designed for rapid deployment and long-term service in demanding conditions.

Structural Foundation & Shell

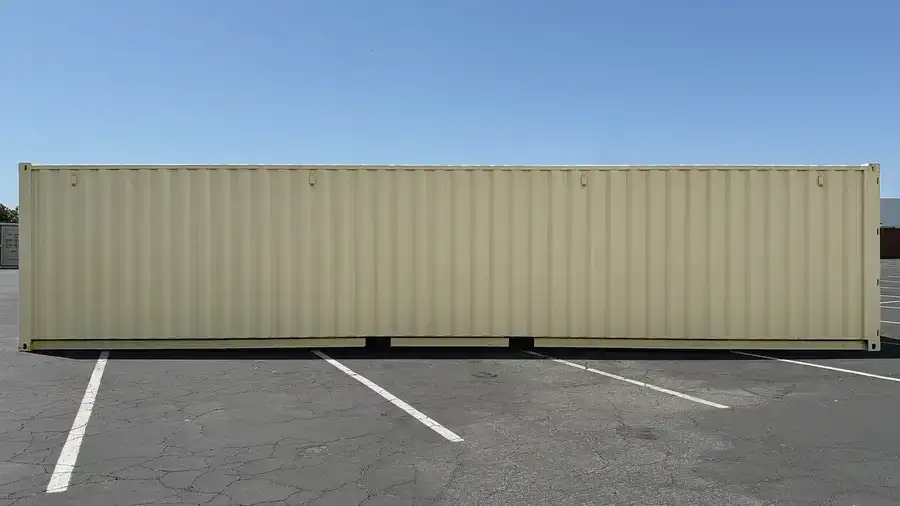

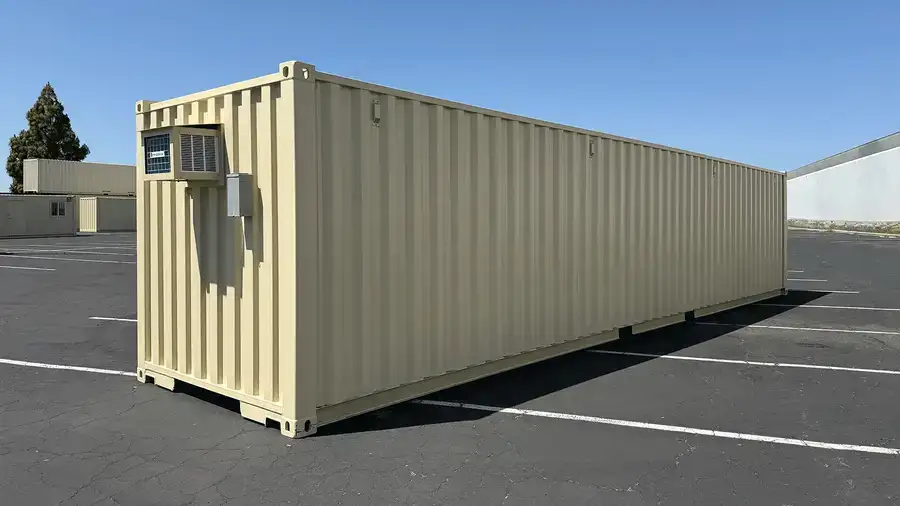

• Base Unit: New 40ft x 8ft x 8ft 6in (L x W x H) one-trip shipping container.
• Primary Structure: High-tensile Corten (Corrosion-Tenacious) steel corrugated walls, roof, and underframe. This steel is known for forming a stable, protective rust patina, enhancing longevity.
• Modification: The container is modified with precisely cut openings for doors, windows, and HVAC units, reinforced with structural steel framing to maintain integral container strength and rigidity.

Construction & Build-Out

• Methodology: A “Container-in-Container” or lined build-out approach. An independent, thermally broken steel stud frame is constructed inside the primary container shell.
• Floor System: Multi-layer construction:
  1. Original container floor as a secondary moisture barrier.
  2. Marine-grade pressure-treated plywood subfloor.
  3. Commercial-grade, heavy-duty vinyl sheet flooring with a wear layer, providing a seamless, easy-to-clean, and durable finish.

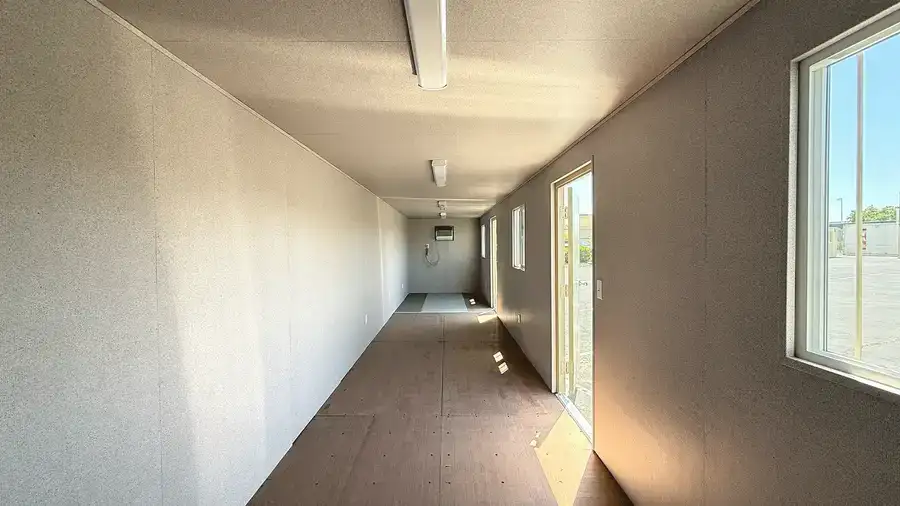

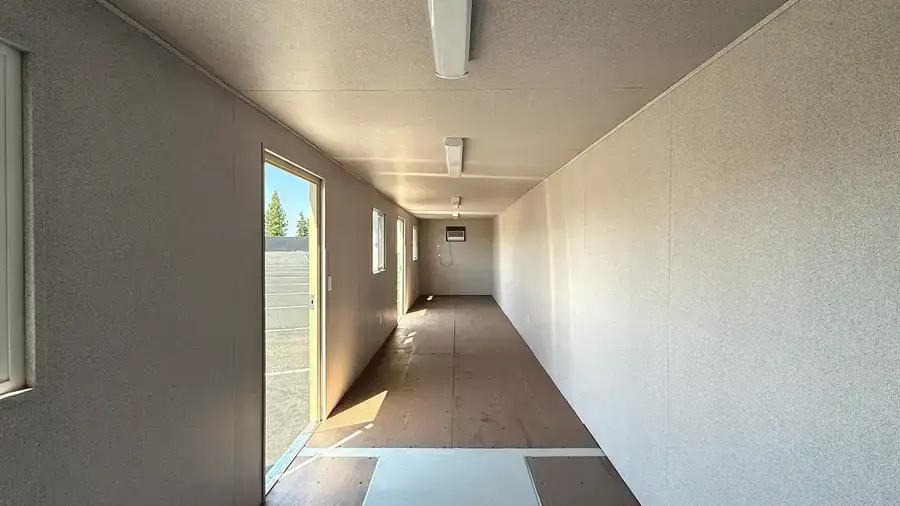

• Wall & Ceiling System:
  1. Insulation: High-density fiberglass or mineral wool batt insulation (typically R-13 to R-19) installed within the stud cavity to mitigate thermal bridging and condensation.
  2. Vapor Barrier: A polyethylene membrane on the warm side of the insulation.
  3. Interior Finish: White, washable PVC or melamine wall and ceiling paneling, creating a bright, clean, and maintenance-free environment.

Climate Control (HVAC)

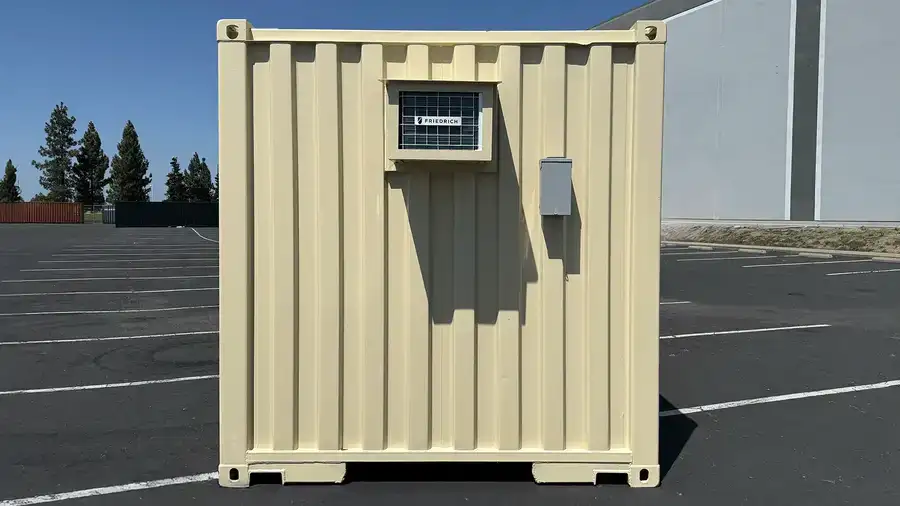

• System: Two independent, wall-mounted split-system or ductless mini-split units (A/C & Heat Pump combos).
• Configuration: Typically one unit at each end of the 40ft space for optimal zoned temperature distribution and redundancy.
• Capacity: Units are sized appropriately for the insulated volume (~650-700 sq ft), ensuring efficient cooling and heating even in extreme ambient temperatures.

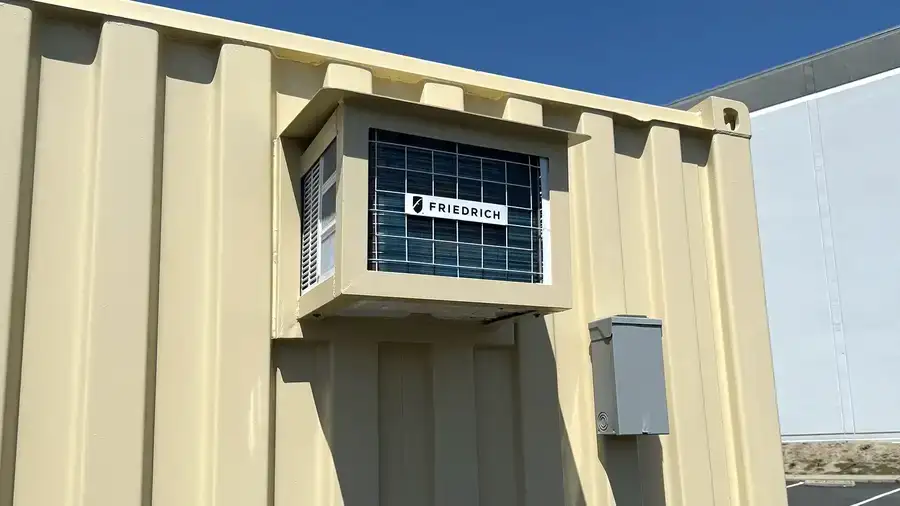

• Installation: Mounted through dedicated sleeves in the container wall with external condensers secured on the container exterior or roof.

Electrical System

• Power Supply: Pre-configured for standard 110V/60Hz North American service.
• Distribution: A main circuit breaker panel distributes power to dedicated circuits.
• Wiring: NEC-compliant Romex (NM-B) or equivalent cabling run within the wall cavities.
• Outlets: Multiple grounded GFCI and standard duplex receptacles strategically placed along walls.
• Lighting: Energy-efficient LED ceiling-mounted panel lights or troffers, providing uniform, flicker-free illumination.

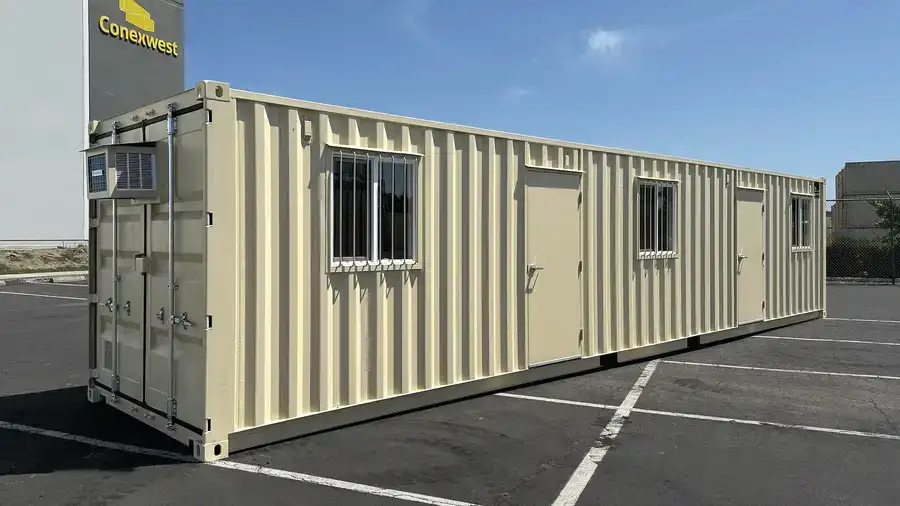

Fenestration & Access

• Windows (3): Heavy-duty, vinyl-framed horizontal sliding windows. Features include:
  • Tempered safety glass.
  • Integrated insect screens.
  • Exterior security bars or grilles.
  • Provisions for privacy blinds or curtains.
• Entry Doors (2): Standard steel personnel doors (typically 36″ x 80″) with commercial-grade hardware:
  • Deadbolt locksets for security.
  • Lever handles for accessibility.
  • Integrated view windows or peepholes.
  • Weather stripping for air/water seal.

Exterior Finish & Protection

• Paint System: Industrial-grade Direct-To-Metal (DTM) paint in RAL 1015 Light Beige.
  • Process: Surface preparation (abrasive blasting or power tool cleaning), application of DTM primer and topcoat.
  • Advantage: DTM paint adheres directly to steel without a separate primer, providing excellent corrosion resistance, durability, and a uniform, aesthetically pleasing finish.

Technical Specifications Summary

• Exterior Dimensions: 40′ L x 8′ W x 8’6″ H (12.19m x 2.44m x 2.59m).
• Interior Clear Dimensions: Approximately 39’6″ L x 7’8″ W x 8’2″ H (varies with insulation thickness).
• Construction: Corten steel outer shell with internal insulated steel-stud frame.
• Flooring: Commercial vinyl over marine plywood subfloor.
• Walls/Ceiling: Insulated (R-13+), finished with white PVC/melamine panels.
• Electrical: 110V system with breaker panel, LED lighting, and multiple outlets.
• HVAC: Two (2) wall-mounted A/C + Heat Pump units.
• Windows: Three (3) sliding, screened, and secured windows.
• Doors: Two (2) steel personnel doors with locks.
• Condition: New (One-Trip), modified.
• Paint: RAL 1015 Light Beige DTM paint.

Intended Applications & Readiness

• Primary Use Cases: Construction site offices, industrial yard command centers, remote project management hubs, emergency response and security stations, portable classrooms, retail kiosks, and modular commercial spaces.
• Delivery State: Delivered fully finished, wired, and equipped. Requires only connection to a standard external power source (and potentially a water source if a wet unit) for immediate occupancy.
